High-quality HFC227ea Fire Suppression System Cylinder Without Pollution For Library
Description
The table shows the specific parameters of several conventional bottles of different sizes
|
NO. |
Specifications |
4.2MPa system |
|
1 |
Capacity |
40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr |
|
2 |
Device model |
QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2 |
|
3 |
Storage pressure |
4.2MPa |
|
4 |
Max. working pressure |
5.3 MPa (50℃) |
|
5 |
Min. working pressure |
3.6MPa (0℃) |
|
6 |
Filling rate |
FM200≤1.0 kg/L / Novec1230≤1.42kg/L |
|
7 |
Discharge time |
≤10s |
|
8 |
Power |
DC24V/1.5A |
|
9 |
Nitrogen driving device |
6.0±1.0MPa |
|
10 |
Storage surroundings |
Temperature:0~50°C Relative humidity:<97% |
|
11 |
Proportion |
≤800m2 |
|
12 |
Volume |
≤3600m3 |
Components

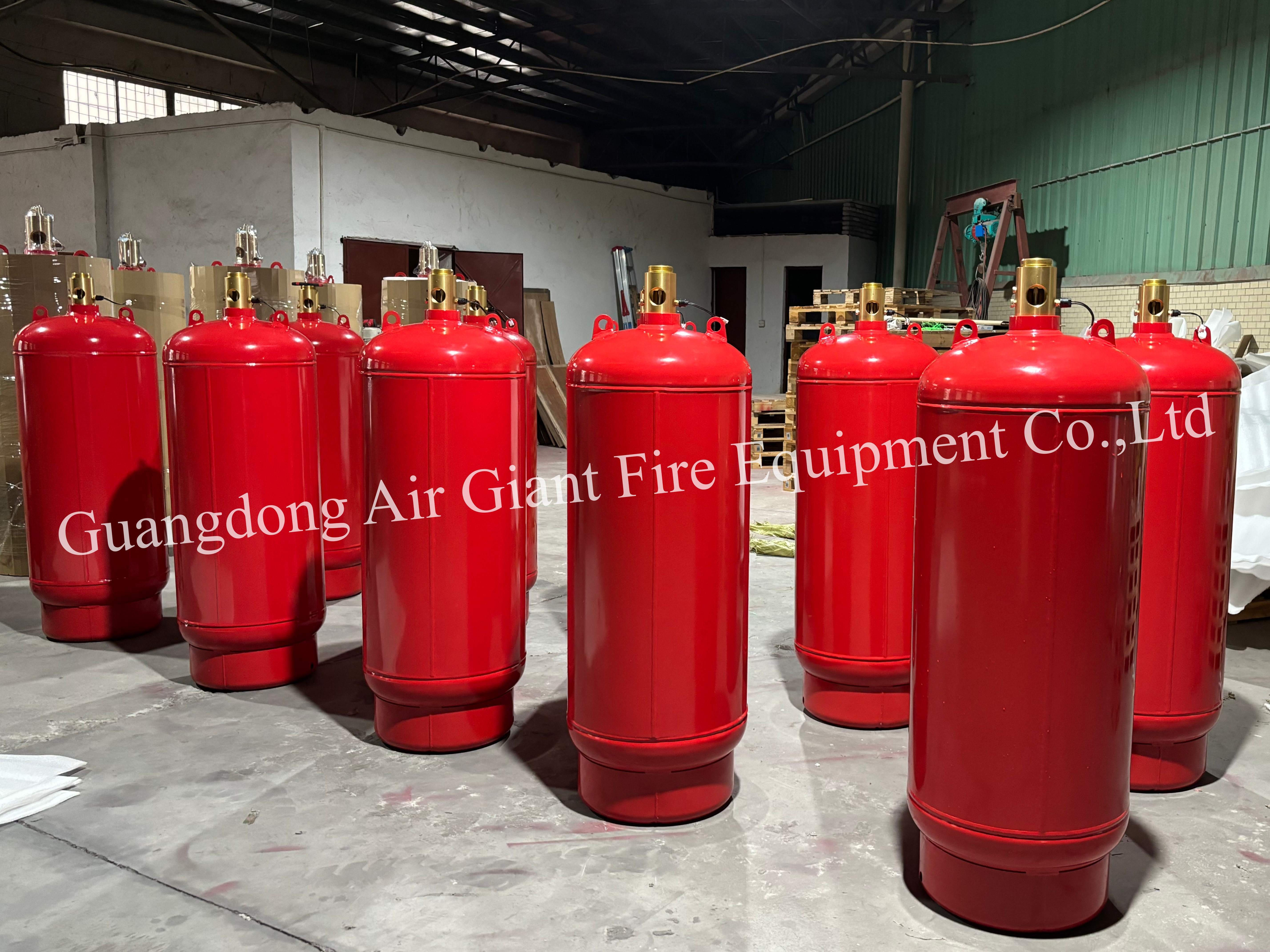

The bottle part is composed of steel cylinder and cylinder valve
Application
The pipe network type fm200 fire suppression system is suitable for a lot of places and several kinds of fires. The followings are some examples for customer as reference:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
