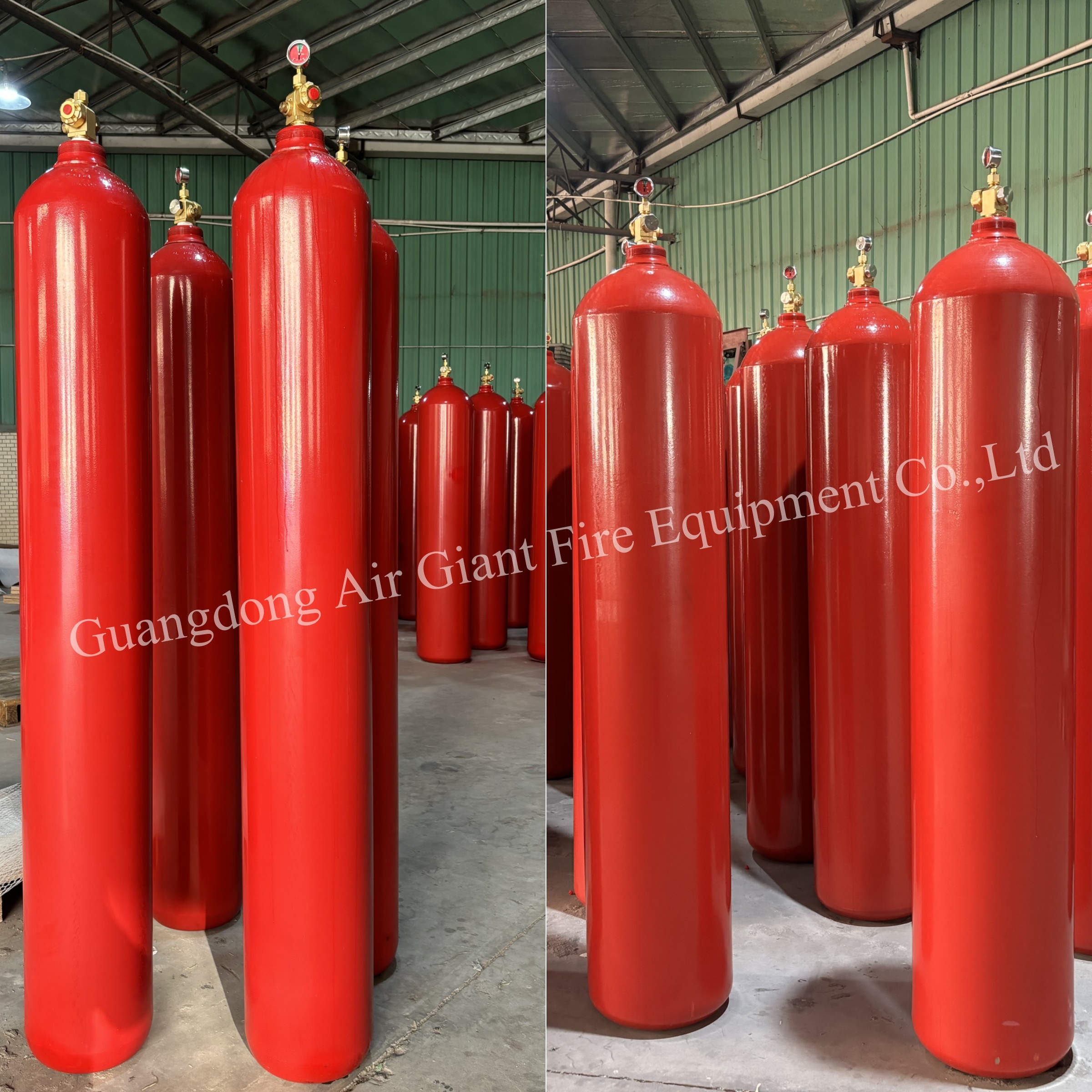

Argonite IG55 Clean Agent Suppression System Cylinder For Industrial
Description
IG55 adopts 50% nitrogen and 50% argon to form fire extinguishing agent, which fully integrates the design concept of new era fire extinguishing system, making the product successfully equipped with the function of protecting environment and efficient fire extinguishing. It has the characteristics of protecting the earth's ecological environment, safety and health, no damage caused by fire extinguishing agent, and enduring fire-extinguishing effect.
The fire-extinguishing principle of IG55 gas is mainly to reduce the oxygen concentration (below 15%) to achieve the fire-extinguishing without supporting combustion. The extinguishing mechanism is to dilute the oxygen in the burning area to achieve the purpose of smothering the fire. The ratio of nitrogen to air is 0.97, which enables the fire extinguishing agent to maintain a constant fire-extinguishing concentration after being released in the protection zone, thus ensuring the fire-extinguishing effect and effectively preventing reignition.
Parameters
| No. | Specification | IG55(50% nitrogen;50% argon) | |||
| 1 | Capacity | 80Ltr | 140ltr | ||
| 2 | Working Pressure | 20MPa | 30MPa | 20MPa | 30MPa |
| 3 | Device Model | QMH20/80 | QMH30/80 | QMH20/140 | QMH30/140 |
| 4 | Filling Capacity of Gas | 22.32kg | 33.48kg | 42kg | 58.2kg |
| 5 | Outside Diameter of Cylinder | Φ267mm | Φ267mm | Φ406mm | Φ356mm |
| 6 | Height of Cylinder | 1870mm | 1870mm | 1460mm | 1925mm |
| 7 | Filling Rate | 0.299kg/L | 0.415kg/L | 0.300kg/L | 0.201kg/L |
| 8 | Spraying Time | ≤120s | |||
| 9 | Power | DC24V/1.6A | |||
| 10 | Nitrogen Pressure of Driving Device | 6.0±1.0MPa(20℃) | |||
| 11 | Condition of Reserving Room for Container | temperature: 0~50℃ | |||
Features and benefits
-- Suitable for occupied areas
-- Electrically nonconductive
-- Chemically inert
-- Colourless, odourless and flavourless
-- No residue to clean up after the discharge
-- Zero Ozone Depletion Potential (ODP)
-- No greenhouse effect
-- No global warming impact
-- No decomposition products
-- No fog and no loss of post-discharge visibility
-- Non corrosive/toxic
-- Stored as a gas
-- Suitable for occupied areas
-- Excellent post-discharge visibility
-- Very low refill cost
-- Easy to obtain anywhere in the world
Application
-- Museums / Archives
-- Libraries / Art Galleries
-- Film Storage / Digital Archives
-- Data Centers / Server Rooms
-- Substations / Electrical Rooms
-- Telecommunication Base Stations / Network Rooms
-- Precision Instrument Workshops
-- Petrochemical Control Rooms
-- Automotive Paint Booths
-- Aircraft Hangars
-- Ship Engine Rooms
-- High-Speed Rail Control Centers
-- Medical Facilities
-- Financial Data Centers
-- Emergency Command Centers
Package
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
