UL Insulated NOVEC1230 Fire Suppression System With No Residue In The Telecommunications Room

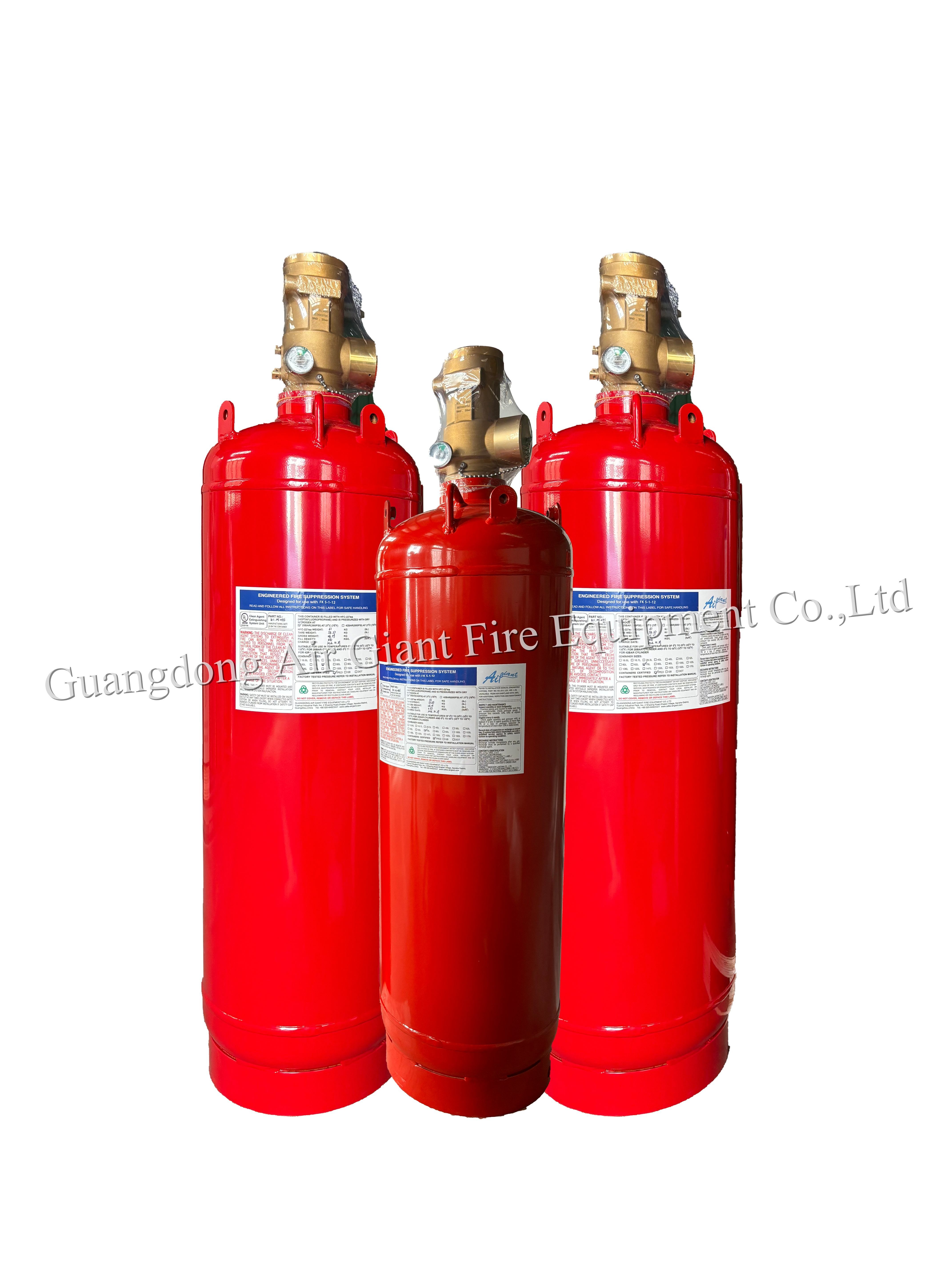

Description of UL NOVEC1230 containers
-- Attributes of Welded Steel DOT series containers
|
Material |
HP345 (G3) |
|
|
Carbon: |
≤0.20% |
|
|
Manganese: |
≤1.25% |
|
|
Phosphorus: |
≤0.025% |
|
|
Sulphur: |
≤0.015% |
|
|
Nominal Working Pressure |
500 psi |
|
|
Hydrostatic Test Pressure |
1000 psi |
|
|
Burst Test Pressure |
> 2000 psi |
|
|
Paint Specification |
Red Polyester Powder Coated |
|
|
Certification |
DOT |
|
-- FK-5-1-12 (NOVEC1230) Welded Container Assembly Details : DOT Container
|
Cylinder with Valve Assembly Part No. |
Container Assembly Type |
Nominal Working Pressure (bar) |
Nominal Cylinder Volume (L) |
Fill Capacity (kg) |
Outlet Size (mm) |
Empty Weight (kg) |
|
|
Min. |
Max. |
||||||
|
813.101.0735 |
AG5112SPA-16.7 |
25 |
16.7 |
8.0 |
18.5 |
33 |
21 |
|
813.101.0745 |
AG5112SPA-28.3 |
28.3 |
13.6 |
31.4 |
33 |
29 |
|
|
813.101.0765 |
AG5112SPA-49 |
49 |
23.5 |
54.4 |
33 |
42 |
|
|
813.101.0775 |
AG5112SPA-52 |
52 |
25.0 |
57.7 |
33 |
50 |
|
|
813.101.0795 |
AG5112SPA-80 |
80 |
60 |
88.8 |
49 |
65 |
|
|
813.101.0826 |
AG5112SPA-103 |
103 |
60 |
114.3 |
49 |
88 |
|
|
813.101.0836 |
AG5112SPA-106 |
106 |
60 |
117.7 |
49 |
88 |
|
|
813.101.0856 |
AG5112SPA-147 |
147 |
70.6 |
163.2 |
49 |
111 |
|
|
813.101.0866 |
AG5112SPA-153 |
153 |
73.4 |
169.8 |
49 |
114 |
|
|
813.101.0886 |
AG5112SPA-180 |
180 |
86.4 |
199.8 |
49 |
127 |
|
Description of UL NOVEC1230 Fire Suppression System
FK-5-1-12 fluid is an acceptable alternative to Halon and is approved by the EPA (US Environmental Protection Agency) and NFPA for use in fire suppression systems. The EPA and NFPA accept extended use exposures of up to 10% no longer than 5 min. FK-5-1-12 systems for spaces that are normally occupied and designed to concentrations up to NOAEL (10% vol.).
Components of UL NOVEC1230 Fire Suppression System
|
No. |
Part Name |
No. |
Part Name |
|
1 |
Cylinder |
6 |
Valve Outlet Adaptor |
|
2 |
Mounting Bracket |
7 |
Pilot Hose |
|
3 |
Fix Steel Channel |
8 |
Discharge Pressure Switch |
|
4 |
Container Valve |
9 |
Nozzle |
|
5 |
Electrical Actuator |
|
|
Features of UL NOVEC1230 Fire Suppression System
1. Environmental protection: Novec1230 / FK-5-1-12 is a non-toxic, colorless, tasteless, non-corrosive, non-conductive and non-explosive fire extinguishing agent, which can protect equipment and environment from damage.
2. High efficiency: the PFH automatic fire extinguishing system can extinguish the fire quickly in a short time without any damage to the protected equipment.
3. High safety: Novec1230 / FK-5-1-12 fire extinguishing agent has high stability, is not easy to burn, and will not produce harmful substances. Therefore, the use of this fire extinguishing system can effectively ensure the safety of personnel and equipment.
4. Strong flexibility: PFH automatic fire extinguishing system can flexibly adapt to different fire extinguishing requirements, and is applicable to various sizes and types of places.
Application of UL NOVEC1230 Fire Suppression System
Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.
The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement production process of pulverized coal, and the ship's engine room, cargo hold, etc.
Packages of UL NOVEC1230 Fire Suppression System
We always pack it with polyfoam firstly and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
